Fruit Meat Vegetable Dryer
Model: LM-1
Trolley No.: 1pc
Motor: 9kw
Area of plate: 5.76m²
Capacity: 50kg/8h
Dimension: 1.55*0.8*2.2m
We're here to help:Easy ways to get the answers you need.
Introduction
Vegetable Fruit and Meat Dryer

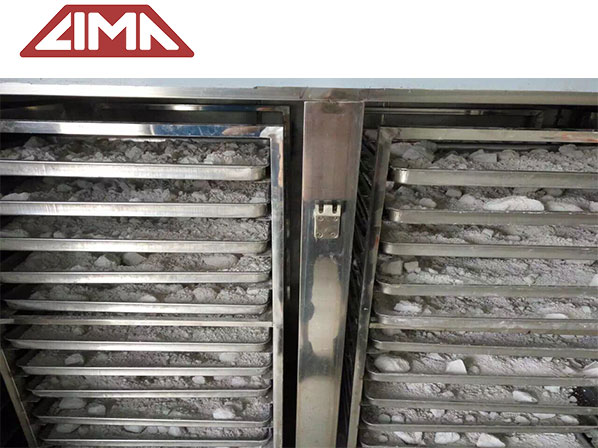

Vegetable fruit and meat dryer is mainly used for drying meat, noodle, fish, medicine, sesame, vegetables, seafood, flowers,etc. The productivity is high and with low consume. There are trolleys with shelves inside the dryer and many plates on the shelves. You can put your fish on the plates, and then put the plates on the shelves. There are wheels on the trolleys you can push them out of the dryer to put on fish. The inner wall, the dryer and the plates are stainless steel. Temperature and humidity are automatic controlled.
Features
Vegetable Fruit and Meat Dryer

1. Hot air circulation with low noise,high temperature bear axial fan and automatic temperature control system, the entire cycle of the system is closed, the maximum thermal efficiency up to 50%.Conserve energy.

2. Forced ventilation,the box is equipped with adjustable sub-wind board,dry material evenly.

3. Heat source can be steam, hot water, electricity, far infrared, wide selection.

4. Wide range of application,all kinds of materials can be dried.

PS: We also hav
e Fruit and vegetable dicing machine, Garlic peeling machine available. Lima offers complete project of drying machine line









Parameter

Model

Number of trolley

Number of Plate

Motor

(kw)

Area of  plates(m²)

Productivity

Dimension

(m)

LM-1

1

24

9

5.76

50kg/8h

1.55*0.8*2.2

LM-2

2

48

12

11.52

100kg/8h

2.1*1.1*2.3

LM-4

4

96

18

23.04

200kg/8h

2.1*2*2.3

LM-6

6

144

22

34.56

300kg/8h

2.6*2.1*2.3

LM-8

8

192

30

46.08

400kg/8h

4*2*2.3
